Zoning Systems: How to Cool Different Rooms to Different Temperatures
Zoning Systems: How to Cool Different Rooms to Different Temperatures
Does your upstairs feel like a sauna while the downstairs is freezing? Is the master bedroom comfortable but the home office unbearable? These are classic signs of a temperature imbalance problem that a single-thermostat HVAC system cannot solve. HVAC zoning systems divide your home into independent temperature zones, each controlled by its own thermostat, allowing different rooms to be heated or cooled to different temperatures simultaneously.
According to the U.S. Department of Energy (energy.gov), zoning can save 15-30% on heating and cooling costs by avoiding the waste of conditioning unoccupied rooms to the same temperature as occupied ones.
Why Single-Thermostat Systems Create Hot and Cold Spots
In a typical home, one thermostat controls the entire HVAC system. When the thermostat reaches the setpoint, the system shuts off — even if other rooms haven’t reached a comfortable temperature. This creates problems because heat rises so upper floors are naturally warmer, sun exposure creates hot spots on south and west-facing rooms, basement and interior rooms stay cooler, different activities generate different heat loads (kitchen cooking vs. bedroom sleeping), and occupancy patterns mean some rooms need conditioning while others don’t.
The result: you either overheat the cold rooms to warm the whole house, or overcool the warm rooms to cool the whole house. Either way, you waste energy and sacrifice comfort.
How Zoning Works
A zoning system adds three components to your existing ductwork: zone dampers (motorized baffles installed inside the ducts that open and close to control airflow to each zone), zone thermostats (separate thermostats for each zone), and a zone control panel (the brain that coordinates between thermostats, dampers, and the HVAC equipment).
When Zone 1 calls for cooling but Zone 2 doesn’t, the system opens Zone 1’s dampers and closes Zone 2’s. The AC cools only the zones that need it. Each zone operates independently, maintaining its own temperature setting.
Typical Zoning Configurations for DMV Homes
| Configuration | Zones | Best For | Cost |
|---|---|---|---|
| 2-zone (upstairs/downstairs) | 2 | Two-story homes with single HVAC system | $1,500-3,000 |
| 3-zone (floors + master suite) | 3 | Larger homes with master on different exposure | $2,500-4,500 |
| 4+ zone (room by room) | 4-8 | Large homes, home offices, guest wings | $4,000-8,000 |
| Ductless mini-split zones | 2-8 | Homes without ductwork or additions | $3,000-5,000 per zone |
Zoning Cost-Benefit Analysis
For a typical 2,500 sq ft two-story DMV home spending $2,400/year on heating and cooling:
| Scenario | Annual Cost | Savings | Investment | Payback |
|---|---|---|---|---|
| No zoning (status quo) | $2,400 | — | — | — |
| 2-zone system | $1,920 | $480/year | $2,500 | 5.2 years |
| 3-zone system | $1,800 | $600/year | $4,000 | 6.7 years |
| Mini-split zones (addition only) | $1,700 | $700/year | $8,000 | 11.4 years |
The DOE estimates 15-30% savings from zoning, varying by home size, layout, and usage patterns. Homes with significant temperature imbalances see the highest savings because they’re currently overcooling or overheating to compensate.
Zoning Considerations and Limitations
Equipment sizing is important. A zoned system must handle the varying airflow demands of opening and closing dampers. If too many zones are closed simultaneously, the system may short-cycle or develop high static pressure. A bypass damper or variable-speed equipment addresses this by providing an outlet for excess airflow.
Ductwork design matters. Zoning works best when ducts are properly sized for the zones they serve. If your existing ductwork was designed for single-zone operation, some modifications may be needed to optimize zone performance.
Variable-speed equipment is ideal for zoning. A variable-speed air handler or furnace adjusts its output to match zone demand, providing the most efficient and comfortable operation. If you’re replacing HVAC equipment, pairing it with a zoning system maximizes both comfort and efficiency.
Smart Thermostat Integration

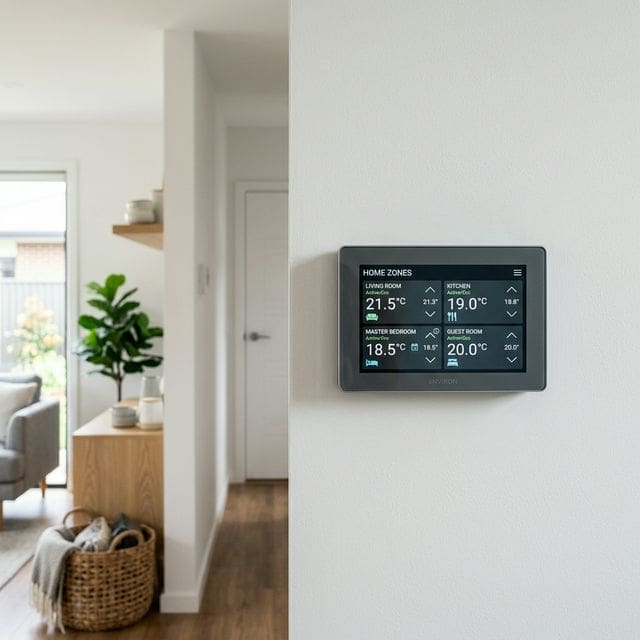

Modern zoning systems integrate with smart thermostats (Ecobee, Honeywell T10), allowing zone schedules based on time of day, remote temperature control from your phone, occupancy sensors that detect which zones are in use, learning algorithms that optimize zone temperatures over time, and energy usage reporting by zone.
Alternatives to Traditional Zoning
If a full zoning system isn’t in your budget, several alternatives can reduce temperature imbalances.
Duct damper adjustment: A technician can manually adjust dampers in your ductwork to redirect more airflow to problem areas. Cost: $100-200 per visit. This doesn’t provide automatic control but can improve balance.
Supplemental mini-split: Adding a ductless mini-split to the hottest or coldest room provides independent temperature control for that space. Cost: $3,000-5,000 per zone.
Smart vent registers: Products like Keen or Flair are motorized vent covers that open and close based on room temperature sensors. Cost: $60-100 per vent. They provide basic zone-like behavior without duct modifications but can create pressure issues if not properly managed. JDL HVAC does not generally recommend these due to potential system pressure concerns.
Frequently Asked Questions
Can zoning be added to my existing HVAC system?
Yes — most existing forced-air systems can be retrofitted with zoning. Zone dampers are installed in the ductwork, thermostats are added to each zone, and a control panel coordinates the system. The process typically takes 1-2 days and doesn’t require replacing your HVAC equipment. JDL HVAC evaluates your existing ductwork to ensure compatibility.
How many zones do I need?
Most homes benefit from 2-3 zones. A typical configuration is Zone 1 for the main living areas (downstairs), Zone 2 for bedrooms (upstairs), and optionally Zone 3 for a master suite or home office with different temperature needs. More zones provide more control but at higher cost.
Will zoning work with my current thermostat?
Zoning requires zone-specific thermostats — your current single thermostat will serve one zone, and additional thermostats are installed for other zones. Smart thermostats compatible with zoning provide the best experience.
Does zoning increase equipment wear?
Properly designed zoning systems do not increase equipment wear. Variable-speed equipment paired with zoning actually reduces wear because the system runs more consistently at lower speeds rather than cycling on and off at full capacity.
Does JDL install zoning systems?
Yes — JDL HVAC & Plumbing Services designs and installs HVAC zoning systems throughout the DMV. We evaluate your home’s ductwork, recommend the optimal zone configuration, and install the complete system. Call (844) 535-4822 for a free in-home assessment.
